A large fibreglass pool, also called a big fibreglass pool or a large fibreglass swimming pool, is a single-piece shell moulded in a factory. It is 8 metres or longer, delivered to site on a truck, and craned into the excavation ready to install. The band runs from 8 metres to 11.48 metres. The longest and widest shell MFP Easy installs is the Saint Azur at 11.48m long and 4.45m wide, holding 52,780 litres of water and weighing 1,286kg on delivery. Road transport sets that ceiling, not the moulding process. A finished shell travels to the block on a public road in one piece, and the legal load limits on that trip cap the length and width that can be delivered whole. Below the Saint Azur the band steps down through the 11.00m Kensington, which holds 51,700 litres and weighs 1,223kg, and the 9.00m Westminster at 988kg.
The large band starts at 8 metres. At that length a shell stops fitting a standard access-and-crane plan and starts needing its own. The Saint Azur sits at the top of the fibreglass pool sizes ladder that starts at 3 metres.
No industry-standard definition of large exists. Barrier Reef Pools Perth defines large as 9.5m to 12.5m. The Fibreglass Pool Company puts it at 8.3m to 12m. River Pools, writing for the United States market, calls large anything bigger than 15 by 35 feet. None of the three says what changes at its floor.
Installed prices last updated: — confirmed for your site at the free site visit.
How big can a fibreglass pool actually be?
The largest fibreglass pool MFP Easy installs is the Saint Azur at 11.48m by 4.45m. What sets the ceiling is road transport width, not the moulding process.
Compass states that standard fibreglass shells are limited to about 12m by road-transport constraints, and reaches greater lengths only by linking shells on site. Narellan states its shells span 3.2m to 12m. Thursday Pools and River Pools both attribute the width ceiling to road transport, with most United States states setting an oversized-load limit of 16 feet, or 4.88m.
One Australian claim sits outside that pattern. Miami Pools states it transports fibreglass pools up to 25 metres long, 4.45 metres wide and 1.3 metres deep in one piece to most areas. Treat that as a single unverified claim: no certification, engineering detail or installed price accompanies it, and no other Australian source supports a 25m one-piece shell.
MFP Easy publishes delivery weights by model. The Saint Azur weighs 1,286kg, the Kensington 1,223kg, the Saint Louis 1,187kg, the Westminster 988kg and the Elysian 831kg. The lift distance is what sets the crane class. We size the crane off the lift distance, not the pool:
- 0 to 15m of lift distance: a small slew crane, 13T to 16T.
- 15 to 20m: a medium slew crane, 40T.
- 20 to 30m: a standard slew crane at 55T or 60T, no counterweight.
- 30 to 36m: a standard slew crane at 60T, with counterweight.
- 36 to 48m: a large slew crane, 80T to 120T.
The standard allowance on an install is a Franna S20T. A 1,286kg shell set 12 metres from the crane is a small slew lift. The same shell set 40 metres back behind a house is a large slew lift.
What if you want a 20m, 25m or 50-foot pool?
No single moulded fibreglass shell is made at 20m, 25m or 50 feet in the range MFP Easy installs, and 11.48m is the top of it. Fifty feet converts to 15.24m, 45 feet to 13.72m and 42 feet to 12.80m.
Three real answers exist at that length:
- A concrete pool. A fibreglass shell is moulded to a fixed outline and tops out at 11.48m. A concrete pool is formed on site, so it can be built to any length and any outline the engineering allows.
- A shorter shell with a swim-jet counter-current. A counter-current swim jet pushes a stream of water down the pool. The swimmer swims against that current and stays in one place, which gives continuous swimming without adding shell length. A fibreglass lap pool answers the same goal with length rather than current.
- Shells linked on site. Compass links two or three shells end to end to reach lengths a single mould cannot. Two linked shells give 18 to 22m, and three give 23 to 30m.
What does a large fibreglass pool cost installed?
The installed price of a large fibreglass pool moves with shell length and depth first, then with site access, soil and rock, elevation change and decking. Length and depth decide which shell is craned in, how big the hole is and how much spoil comes out of it.
Every installed price MFP Easy publishes covers seven items:
- Excavation.
- The crane lift.
- Premium filtration.
- A magnesium mineral chlorinator.
- LED lighting.
- Council approval fees.
- Lifetime warranties, including the lifetime structural warranty on the Aqua Technics shell.
Every figure on the model cards above is an installed price with those seven items inside it, which is the number to compare against any other pool quote.
Length alone does not set the figure. Two shells in the range are both exactly 8.00m long:

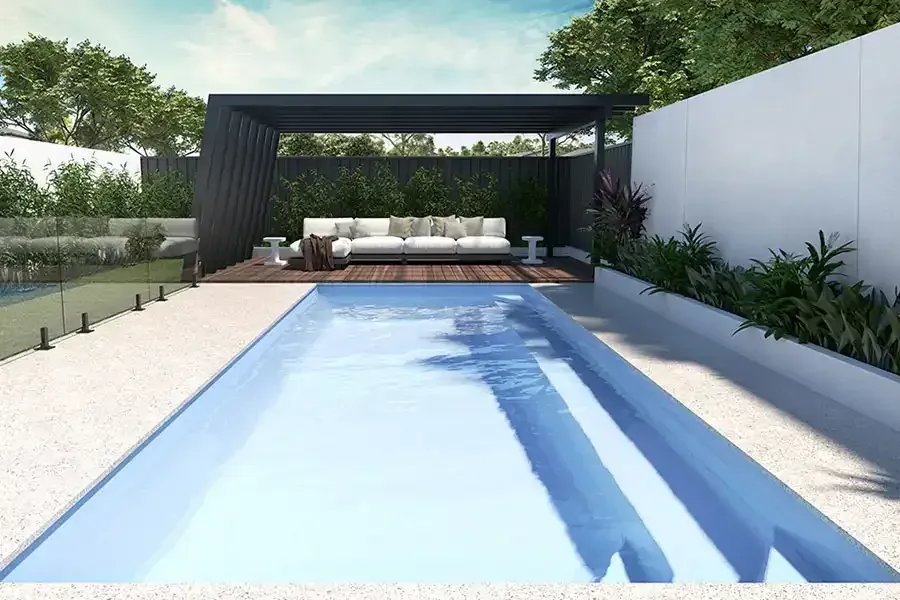

- Sheffield, Piazza Series, 8.00m x 3.00m, 0.98m to 1.96m deep: $63,500 installed.

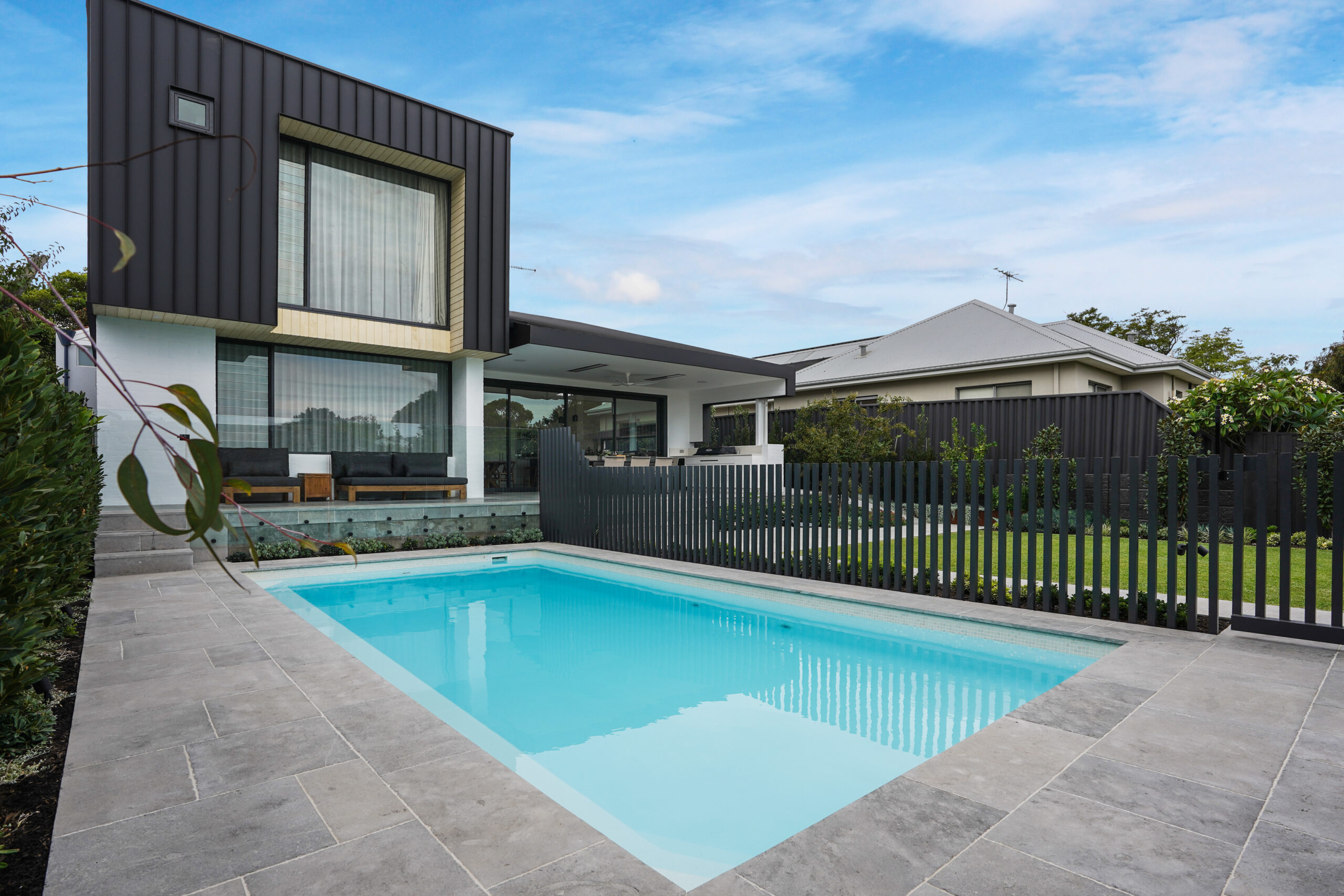

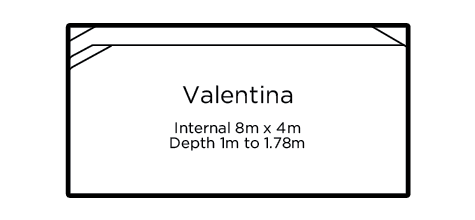

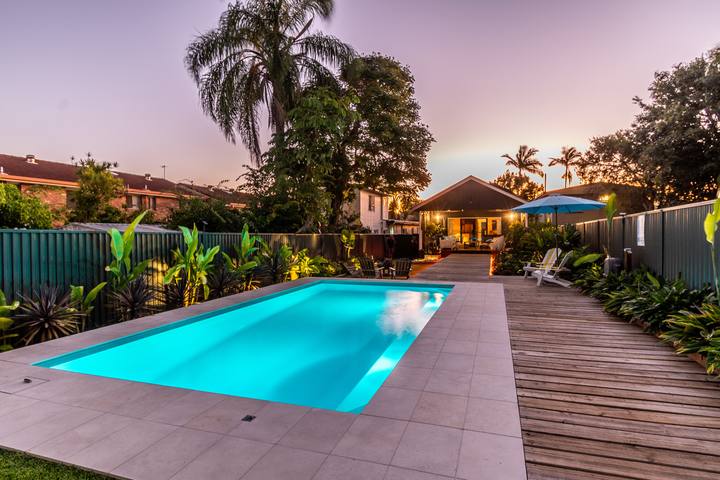

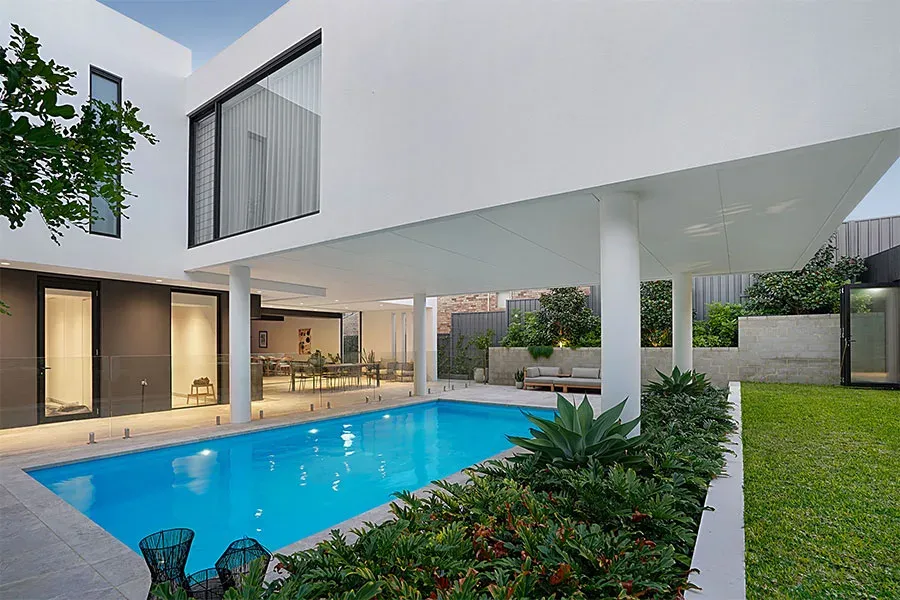

- Valentina, Piazza Series, 8.00m x 4.00m, 1.00m to 1.80m deep: $69,405 installed.
The Valentina is 4.00m wide and holds 38,700 litres. The Sheffield is 3.00m wide and holds 29,000 litres. Same length, wider shell, more water, higher installed price.
Shell length and depth set the starting figure, and the rest of it comes off your block: what a large fibreglass pool costs installed on your site is priced from the access width, the crane's lift distance and how much of the shell sits above natural ground.
Will a large fibreglass shell fit in your backyard?
Whether a large fibreglass shell fits is decided by four site facts, not by how big the yard looks. The first two are the side access width and the distance from the hole to the truck. The second two are the crane's lift distance with whatever sits in its path, and how much of the shell sits above natural ground.
| Site fact | What gets measured | What it decides |
|---|---|---|
| Side access width | The narrowest point on the path from the street to the pool area | Under 1.38m we dig with a mini excavator. Under 1.57m it is a mini excavator with a small bobcat. At 3m or wider, with the truck within 5m of the hole, we load straight from the excavator to the truck |
| Distance from the hole to the truck | Metres the spoil has to travel from the excavation to the tipper | Spoil cartage is banded at 0 to 20m, 20 to 40m and 40 to 60m from the hole to the truck |
| Crane lift distance and lift path | Metres from the crane's setup position to the excavation, plus what sits above the path | Lift distance sets the crane class. Overhead wires, tree branches that need a permit to cut, or a driveway that will not carry the crane's weight can stop the lift entirely |
| Shell height above natural ground | How much of the shell stands proud of the existing ground level | Up to about 300mm needs no retaining. Above 300mm the shell needs a retaining wall or an engineered rib system |
Queensland then adds conditions that apply before the pool can be filled. Any pool holding more than 300mm of water needs council building approval and a compliant safety barrier. The pool also has to be recorded on the state pool safety register. The barrier must be a fence at least 1200mm high, with gaps under 100mm, a 900mm non-climbable zone and a self-closing, self-latching gate. Those rules apply to fibreglass, concrete and above-ground pools alike.
The two 300mm rules measure different things. One is a depth of water, and it triggers council approval and fencing. The other is a height of shell above natural ground, and it triggers retaining. We handle the council paperwork, engineering, certification and fencing sign-off, and the approval fees sit inside the installed price.
Who makes the largest fibreglass pools in Australia?
Every shell MFP Easy installs is an Australian-made Aqua Technics pool, and the Aqua Technics range tops out at the Saint Azur at 11.48m by 4.45m. Aqua Technics builds its shells with Graphene Nano-Tech construction and holds product certification to AS 1838, the Australian standard for premoulded fibreglass pools, which it has held since 1984.
Other manufacturers publish largest-pool claims of their own. Factory Pools Perth states that its Hampton Grande is Australia's largest fibreglass pool. Barrier Reef names its Whitsunday at 15 feet 8 inches by 40 feet, which is 12.19m long. Both are claims those companies make about their own ranges.
We hand over in 10 to 12 weeks from contract to water, with the council approvals handled. We install at the same published prices across Brisbane, North Brisbane, the Gold Coast, Sunshine Coast, Ipswich and Toowoomba.
What is the largest and deepest fibreglass pool available?
The deepest shells MFP Easy installs reach 2.00m at the deep end, and the longest reaches 11.48m. Those two ceilings are set by different constraints: length by road transport, depth by how much of the shell's length the deep end consumes. Three shells reach 2.00m: the 11.00m Kensington, the 9.50m Saint Louis and the 9.00m Amalfi. No shorter shell in the range carries a 2.00m deep end.
| Model | Length | Width | Shallow | Deepest point | Water volume |
|---|---|---|---|---|---|
| Saint Azur | 11.48m | 4.45m | 1.37m | 1.96m | 52,780L |
| Kensington | 11.00m | 4.00m | 1.00m | 2.00m | 51,700L |
| Saint Louis | 9.50m | 4.00m | 1.37m | 2.00m | 42,500L |
| Westminster | 9.00m | 4.00m | 1.00m | 1.80m | 39,490L |
| Amalfi | 9.00m | 3.60m | 0.90m | 2.00m | 30,600L |
| Hayman | 8.50m | 3.80m | 1.30m | 1.80m | 34,500L |

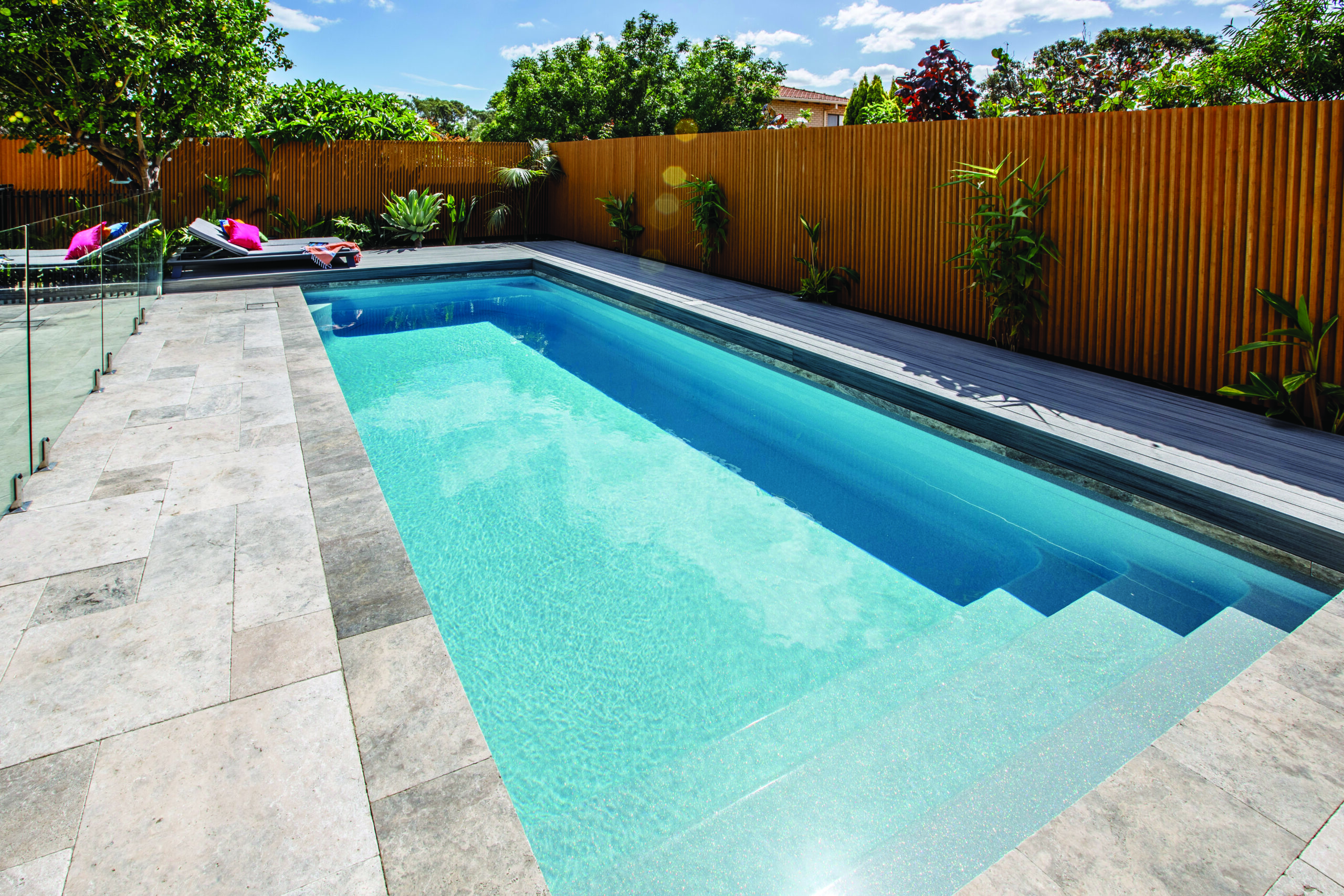

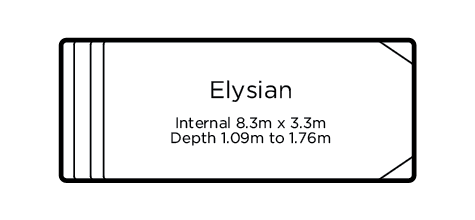

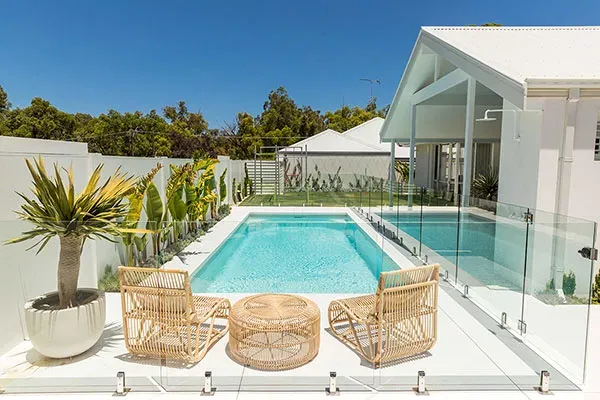

| Elysian | 8.30m | 3.30m | 1.00m | 1.75m | 29,750L |
| Valentina | 8.00m | 4.00m | 1.00m | 1.80m | 38,700L |
| Sheffield | 8.00m | 3.00m | 0.98m | 1.96m | 29,000L |
Depth is moulded in rather than chosen, so it comes with the model. River Pools, writing for the United States market, puts the average maximum depth of a large fibreglass pool at 6 feet 6 inches, or 1.98m. River Pools puts the range of maximum depths at 3.5 feet to 8 feet 6 inches, which is 2.59m at the top.
Large pool questions, answered
What is the maximum width of a fibreglass pool?
The widest shell MFP Easy installs is the Saint Azur at 4.45m. Four models sit at 4.00m wide: the Kensington, the Saint Louis, the Westminster and the Valentina. Width is capped by road transport rather than by the mould. Thursday Pools and River Pools both attribute the ceiling to that constraint, with most United States states setting an oversized-load limit of 16 feet, or 4.88m.
Is a fibreglass pool more expensive than a concrete pool?
Whether a fibreglass pool is more expensive than a concrete pool depends on what each quote covers, because a shell price and an installed price are different numbers. For a fibreglass pool, shell length and depth set the figure first, then site access, soil and rock, elevation change and decking move it. Each shell carries its own installed price on its model card above, and excavation, the crane lift, filtration, the mineral chlorinator, lighting, approval fees and warranties sit inside that figure rather than on top of it. A fibreglass shell arrives finished, so the on-site build is measured in days or weeks. A concrete pool is formed, cured and finished in place over months of trades.
What is the downside of a fibreglass pool?
A fibreglass pool gives you fewer shape and size options than concrete or vinyl. Concrete is poured to any outline. A fibreglass shell is moulded to a fixed one, so the pool is chosen from existing moulds rather than drawn from scratch. The second limit is length. The longest shell MFP Easy installs is 11.48m. A pool longer than that has to be a concrete build or a set of shells linked on site.
What is the lifespan of a fibreglass pool?
The gelcoat interior of a fibreglass pool never needs resurfacing, and Aqua Technics shells carry a lifetime structural warranty that MFP Easy includes in every installed price. The gelcoat surface is smooth and non-porous, so it resists algae and needs fewer chemicals. The shell itself flexes slightly rather than cracking, which lets it absorb ground movement that cracks a rigid concrete structure.
Which is better for a large pool, fibreglass or concrete?
A large fibreglass pool is a finished shell craned into the excavation, and its gelcoat interior never needs resurfacing. Its outline and its length are fixed by the mould, up to 11.48m. A large concrete pool is formed on site, so it can be built to any outline and any length the engineering supports. A concrete pool needs resurfacing or replastering roughly every 10 to 15 years and acid washing every 3 to 5 years. If the pool you want already exists as a mould at 8m or longer, a fibreglass shell puts it in the ground in days or weeks of on-site work. An outline that no mould produces has to be formed in concrete, and a length past 11.48m is built either in concrete or by linking shells on site.
